更多>>SG-9101CA小體積晶振X1G005301001400能夠節省電路板空間
來源：http://www.sedorisc.com 作者：康華爾電子 2022年10月17

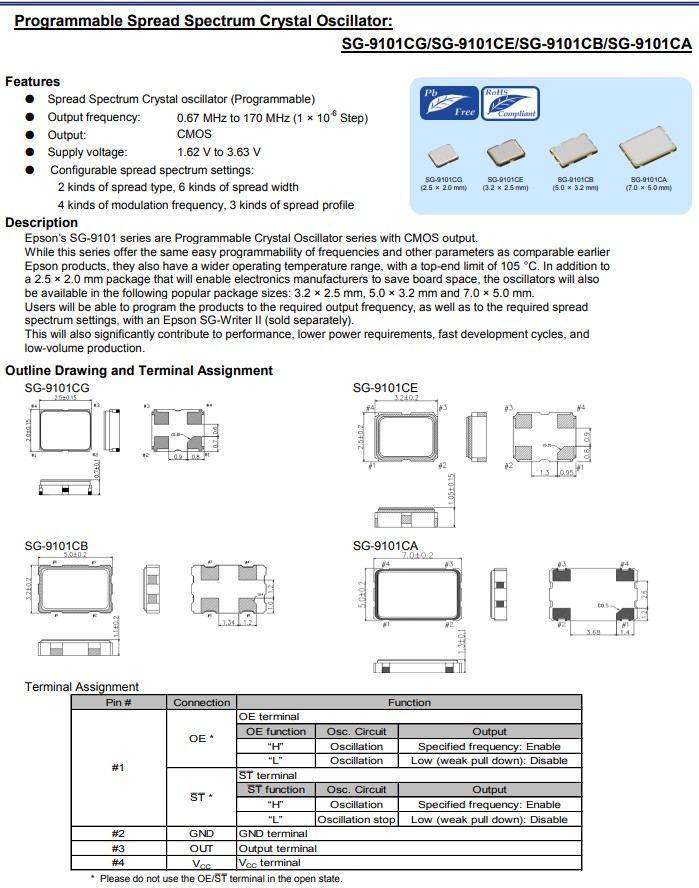

愛普生晶振SG-9101系列，是具有CMOS輸出的可編程晶振系列。雖然這一系列提供了與早期類似的頻率和其它參數的同樣容易的可編程性Epson產品，它們還具有更寬的工作溫度范圍，上限為105℃。此外7.0x5.0mm封裝有助于電子制造商節省電路板空間，振蕩器還將提供以下常見封裝尺寸:3.2x2.5mm、5.0x3.2mm和2.5x2.0mm貼片晶振。用戶可以將產品編程為所需的輸出頻率以及所需的展寬光譜設置，帶Epson SG-Writer II(單獨銷售)。 這也將大大有助于提高性能、降低功耗要求、縮短開發周期和小批量生產。
特征：
輸出：CMOS有源晶振
擴頻晶體振蕩器(可編程)
輸出頻率：0.67MHz至170MHz (1x10-6步進)
電源電壓：1.62V至3.63V
可配置的擴頻設置:2種攤鋪類型，6種攤鋪寬度，4種調制頻率，3種擴頻模式
SG-9101CA小體積晶振X1G005301001400能夠節省電路板空間,X1G005301004700,可編程晶振
特征：
輸出：CMOS有源晶振
擴頻晶體振蕩器(可編程)
輸出頻率：0.67MHz至170MHz (1x10-6步進)
電源電壓：1.62V至3.63V
可配置的擴頻設置:2種攤鋪類型，6種攤鋪寬度，4種調制頻率，3種擴頻模式
SG-9101CA小體積晶振X1G005301001400能夠節省電路板空間,X1G005301004700,可編程晶振
                                                  產品編碼 |
  頻率 |
  型號 |
  尺寸(長寬高) |
  輸出波 |
  電源電壓 |
  工作溫度 |
| X1G005301001100 | 66.666000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301001200 | 40.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301001300 | 40.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301001400 | 16.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301001500 | 20.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301001600 | 48.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 105°C |
| X1G005301001700 | 64.100000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 105°C |
| X1G005301001800 | 16.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301001900 | 82.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 105°C |
| X1G005301002000 | 50.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301002100 | 30.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301002200 | 66.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301002300 | 50.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301002400 | 66.660000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301002500 | 40.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301002600 | 33.333300MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301002700 | 66.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301002800 | 32.768000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 105°C |
| X1G005301002900 | 66.666700MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301003000 | 32.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301003100 | 25.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 105°C |
| X1G005301003200 | 40.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301003300 | 75.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301003400 | 50.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301003500 | 25.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301003600 | 13.500000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301003700 | 14.745600MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301003800 | 44.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301003900 | 48.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301004000 | 20.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301004100 | 40.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301004200 | 13.560000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301004300 | 156.250000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 105°C |
| X1G005301004400 | 66.666600MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301004500 | 29.491200MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301004600 | 19.660000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 105°C |
| X1G005301004700 | 12.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301004800 | 50.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301004900 | 60.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301005000 | 2.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301005100 | 160.000000MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G005301005200 | 29.461200MHz | SG-9101CA | 7.00x5.00x1.40mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
SG-9101CA小體積晶振X1G005301001400能夠節省電路板空間,X1G005301004700,可編程晶振
愛普生集團是世界500強企業,所涉及領域較廣,主要生產電子元器件，如石英晶振,32.768K晶振,可編程晶振,石英晶體振蕩器，濾波器等頻率元件。致力于發揮“石英”材料的優越性能的“QMEMS”技術，創造出體積更小、更高性能或全新功能的電子元器件,愛普生晶振集團在晶振全球廠家排名中，占據首位.
