更多>>531AC156M250DG應用于時鐘和數據恢復晶振
來源：http://www.sedorisc.com 作者：康華爾電子 2023年04月27

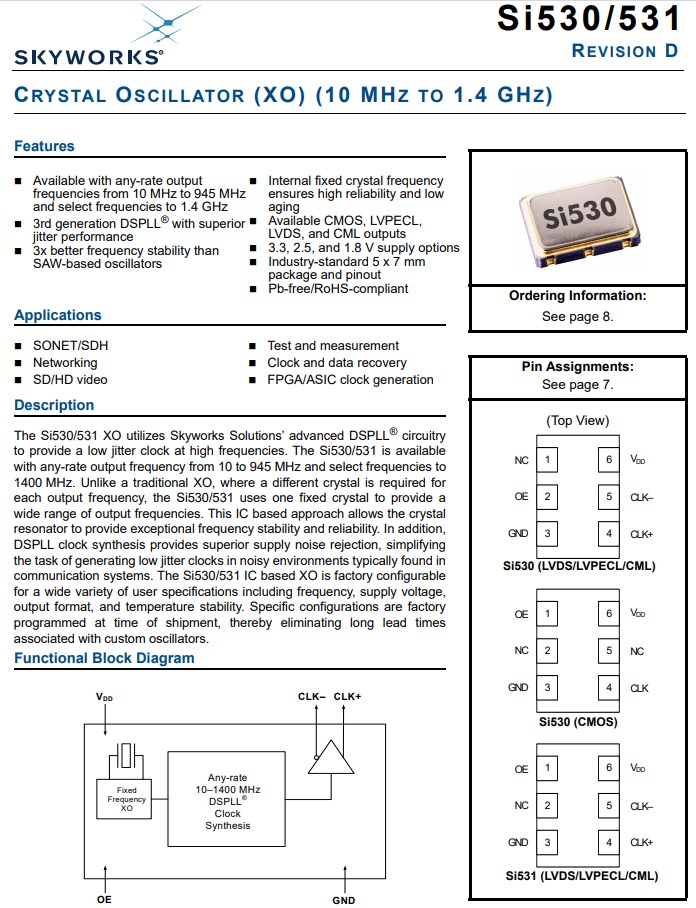

Silicon晶振系列Si531 XO采用Skyworks Solutions的先進DSPLL®電路，以在高頻下提供低抖動時鐘。Si531貼片晶振具有從10MHz到945MHz的任意速率輸出頻率，并選擇頻率1400MHz。與傳統XO不同，傳統XO需要不同的晶體，每個輸出頻率，Si531石英晶振使用一個固定晶體來提供寬范圍的輸出頻率。這種基于IC的方法允許晶體，提供卓越的頻率穩定性和可靠性。此外，DSPLL時鐘合成提供卓越的電源噪聲抑制，簡化了在通信系統中常見的噪聲環境中產生低抖動時鐘的任務。Si531 IC石英晶體振蕩器在工廠可配置用于各種用戶規格，包括頻率、電源電壓、輸出格式和溫度穩定性。特定配置在發貨時進行工廠編程，從而消除了與定制振蕩器相關的長交付周期。531AC156M250DG應用于時鐘和數據恢復晶振
Si531 XO支持多種選項，包括頻率、溫度穩定性、輸出格式和VDD。 裝運時，Si531有源晶振中已編程設定了具體的器件配置。配置可以是 使用下面的零件號配置表指定。Skyworks解決方案提供了一個基于網絡瀏覽器的零件號配置實用程序來簡化此過程。Si531 XO系列采用符合RoHS標準的工業標準6- 襯墊，小體積7.0x5.0mm包裝。Si531系列支持LVPECL、LVDS和的備用OE引腳排列(引腳#1) CML輸出格式。531AC156M250DG應用于時鐘和數據恢復晶振
531AC156M250DG應用于時鐘和數據恢復晶振
產品特點：
可用于任何速率的輸出 頻率從10MHz到945MHz，并選擇1.4GHz的頻率
第三代DSPLL，內置高級 抖動性能
頻率穩定性比高3倍 基于SAW的振蕩器
內部固定晶體頻率 確保高可靠性和低老化
可用CMOS、LVPECL、 LVDS和CML輸出差分晶振
3.3、2.5和1.8V電源選項
行業標準5x7毫米 封裝和引腳排列
無鉛/符合RoHS標準
應用于：聲納/SDH，網絡，SD/HD視頻，測試和測量，時鐘和數據恢復，FPGA/AASIC時鐘生成
| 原廠代碼 | 品牌 | 型號 | 頻率 | 電壓 | 頻率穩定度 |
| 531BB125M000DG | Silicon晶振 | Si531 | 125MHz | 3.3V | ±20ppm |
| 531FB200M000DG | Silicon晶振 | Si531 | 200MHz | 2.5V | ±20ppm |
| 531FC250M000DG | Silicon晶振 | Si531 | 250MHz | 2.5V | ±7ppm |
| 531FB125M000DG | Silicon晶振 | Si531 | 125MHz | 2.5V | ±20ppm |
| 531BC200M000DG | Silicon晶振 | Si531 | 200MHz | 3.3V | ±7ppm |
| 531BC250M000DG | Silicon晶振 | Si531 | 250MHz | 3.3V | ±7ppm |
| 531BC125M000DG | Silicon晶振 | Si531 | 125MHz | 3.3V | ±7ppm |
| 531FB106M250DG | Silicon晶振 | Si531 | 106.25MHz | 2.5V | ±20ppm |
| 531AC156M250DG | Silicon晶振 | Si531 | 156.25MHz | 3.3V | ±7ppm |
| 531AC200M000DG | Silicon晶振 | Si531 | 200MHz | 3.3V | ±7ppm |
| 531BC148M500DG | 美國進口晶振 | Si531 | 148.5MHz | 3.3V | ±7ppm |
| 531BC156M250DG | Silicon晶振 | Si531 | 156.25MHz | 3.3V | ±7ppm |
| 531AC125M000DG | Silicon晶振 | Si531 | 125MHz | 3.3V | ±7ppm |
| 531FC125M000DG | Silicon晶振 | Si531 | 125MHz | 2.5V | ±7ppm |
| 531FC156M250DG | Silicon晶振 | Si531 | 156.25MHz | 2.5V | ±7ppm |
| 531FC148M500DG | Silicon晶振 | Si531 | 148.5MHz | 2.5V | ±7ppm |
| 531AC155M520DG | Silicon晶振 | Si531 | 155.52MHz | 3.3V | ±7ppm |
| 531BC155M520DG | Silicon晶振 | Si531 | 155.52MHz | 3.3V | ±7ppm |
| 531FC200M000DG | Silicon晶振 | Si531 | 200MHz | 2.5V | ±7ppm |
| 531AC622M080DG | Silicon晶振 | Si531 | 622.08MHz | 3.3V | ±7ppm |
| 531AC312M500DG | Silicon晶振 | Si531 | 312.5MHz | 3.3V | ±7ppm |
| 531AC106M250DG | Silicon晶振 | Si531 | 106.25MHz | 3.3V | ±7ppm |
| 531EC106M250DG | Silicon晶振 | Si531 | 106.25MHz | 2.5V | ±7ppm |
| 531BC187M500DG | Silicon晶振 | Si531 | 187.5MHz | 3.3V | ±7ppm |
| 531EC155M520DG | Silicon晶振 | Si531 | 155.52MHz | 2.5V | ±7ppm |
| 531AC187M500DG | Silicon晶振 | Si531 | 187.5MHz | 3.3V | ±7ppm |
| 531EC187M500DG | Silicon晶振 | Si531 | 187.5MHz | 2.5V | ±7ppm |
| 531EC148M500DG | Silicon晶振 | Si531 | 148.5MHz | 2.5V | ±7ppm |
| 531FC155M520DG | Silicon晶振 | Si531 | 155.52MHz | 2.5V | ±7ppm |
| 531EC156M250DG | Silicon晶振 | Si531 | 156.25MHz | 2.5V | ±7ppm |
| 531AC311M040DG | Silicon晶振 | Si531 | 311.04MHz | 3.3V | ±7ppm |
| 531BC311M040DG | Silicon晶振 | Si531 | 311.04MHz | 3.3V | ±7ppm |
| 531EC311M040DG | Silicon晶振 | Si531 | 311.04MHz | 2.5V | ±7ppm |
| 531EC622M080DG | Silicon晶振 | Si531 | 622.08MHz | 2.5V | ±7ppm |
| 531FC622M080DG | Silicon晶振 | Si531 | 622.08MHz | 2.5V | ±7ppm |
| 531FC311M040DG | Silicon晶振 | Si531 | 311.04MHz | 2.5V | ±7ppm |
| 531BC622M080DG | Silicon晶振 | Si531 | 622.08MHz | 3.3V | ±7ppm |
| 531FC312M500DG | Silicon晶振 | Si531 | 312.5MHz | 2.5V | ±7ppm |
| 531EC312M500DG | Silicon晶振 | Si531 | 312.5MHz | 2.5V | ±7ppm |
| 531AC250M000DG | Silicon晶振 | Si531 | 250MHz | 3.3V | ±7ppm |
| 531EC250M000DG | Silicon晶振 | Si531 | 250MHz | 2.5V | ±7ppm |
| 531BC312M500DG | SMD晶振 | Si531 | 312.5MHz | 3.3V | ±7ppm |
| 531AA156M250DG | Silicon晶振 | Si531 | 156.25MHz | 3.3V | ±50ppm |
| 531BC106M250DG | Silicon晶振 | Si531 | 106.25MHz | 3.3V | ±7ppm |
| 531EC125M000DG | Silicon晶振 | Si531 | 125MHz | 2.5V | ±7ppm |
| 531FC106M250DG | Silicon晶振 | Si531 | 106.25MHz | 2.5V | ±7ppm |
| 531FC187M500DG | Silicon晶振 | Si531 | 187.5MHz | 2.5V | ±7ppm |
| 531EC200M000DG | Silicon晶振 | Si531 | 200MHz | 2.5V | ±7ppm |
| 531AC148M500DG | Silicon晶振 | Si531 | 148.5MHz | 3.3V | ±7ppm |
| 531AC125M000DGR | Silicon晶振 | Si531 | 125MHz | 3.3V | ±7ppm |
| 531BC125M000DGR | Silicon晶振 | Si531 | 125MHz | 3.3V | ±7ppm |
| 531EC125M000DGR | Silicon晶振 | Si531 | 125MHz | 2.5V | ±7ppm |
| 531FC125M000DGR | Silicon晶振 | Si531 | 125MHz | 2.5V | ±7ppm |
| 531AC106M250DGR | Silicon晶振 | Si531 | 106.25MHz | 3.3V | ±7ppm |
| 531BC106M250DGR | Silicon晶振 | Si531 | 106.25MHz | 3.3V | ±7ppm |
| 531EC106M250DGR | Silicon晶振 | Si531 | 106.25MHz | 2.5V | ±7ppm |
| 531FC106M250DGR | Silicon晶振 | Si531 | 106.25MHz | 2.5V | ±7ppm |
| 531FC25M0000DGR | Silicon晶振 | Si531 | 25MHz | 2.5V | ±7ppm |
| 531AC155M520DGR | Silicon晶振 | Si531 | 155.52MHz | 3.3V | ±7ppm |
| 531AC156M250DGR | Silicon晶振 | Si531 | 156.25MHz | 3.3V | ±7ppm |
| 531BC155M520DGR | Silicon晶振 | Si531 | 155.52MHz | 3.3V | ±7ppm |
| 531BC156M250DGR | Silicon晶振 | Si531 | 156.25MHz | 3.3V | ±7ppm |
| 531EC155M520DGR | Silicon晶振 | Si531 | 155.52MHz | 2.5V | ±7ppm |
| 531EC156M250DGR | Silicon晶振 | Si531 | 156.25MHz | 2.5V | ±7ppm |
| 531FC155M520DGR | Silicon晶振 | Si531 | 155.52MHz | 2.5V | ±7ppm |
| 531FC156M250DGR | Silicon晶振 | Si531 | 156.25MHz | 2.5V | ±7ppm |
| 531AC187M500DGR | Silicon晶振 | Si531 | 187.5MHz | 3.3V | ±7ppm |
| 531BC187M500DGR | Silicon晶振 | Si531 | 187.5MHz | 3.3V | ±7ppm |
| 531EC187M500DGR | Silicon晶振 | Si531 | 187.5MHz | 2.5V | ±7ppm |
| 531FC187M500DGR | Silicon晶振 | Si531 | 187.5MHz | 2.5V | ±7ppm |
| 531AC148M500DGR | Silicon晶振 | Si531 | 148.5MHz | 3.3V | ±7ppm |
| 531AC200M000DGR | Silicon晶振 | Si531 | 200MHz | 3.3V | ±7ppm |
| 531BC148M500DGR | Silicon晶振 | Si531 | 148.5MHz | 3.3V | ±7ppm |
| 531BC200M000DGR | Silicon晶振 | Si531 | 200MHz | 3.3V | ±7ppm |
| 531EC148M500DGR | Silicon晶振 | Si531 | 148.5MHz | 2.5V | ±7ppm |
| 531EC200M000DGR | Silicon晶振 | Si531 | 200MHz | 2.5V | ±7ppm |
| 531FC148M500DGR | Silicon晶振 | Si531 | 148.5MHz | 2.5V | ±7ppm |
| 531FC200M000DGR | Silicon晶振 | Si531 | 200MHz | 2.5V | ±7ppm |
| 531AC312M500DGR | Silicon晶振 | Si531 | 312.5MHz | 3.3V | ±7ppm |
| 531BC312M500DGR | Silicon晶振 | Si531 | 312.5MHz | 3.3V | ±7ppm |
| 531EC312M500DGR | Silicon晶振 | Si531 | 312.5MHz | 2.5V | ±7ppm |
| 531FC312M500DGR | Silicon晶振 | Si531 | 312.5MHz | 2.5V | ±7ppm |
| 531AC250M000DGR | Silicon晶振 | Si531 | 250MHz | 3.3V | ±7ppm |
| 531AC311M040DGR | Silicon晶振 | Si531 | 311.04MHz | 3.3V | ±7ppm |
| 531AC622M080DGR | Silicon晶振 | Si531 | 622.08MHz | 3.3V | ±7ppm |
產品特點：
可用于任何速率的輸出 頻率從10MHz到945MHz，并選擇1.4GHz的頻率
第三代DSPLL，內置高級 抖動性能
頻率穩定性比高3倍 基于SAW的振蕩器
內部固定晶體頻率 確保高可靠性和低老化
可用CMOS、LVPECL、 LVDS和CML輸出差分晶振
3.3、2.5和1.8V電源選項
行業標準5x7毫米 封裝和引腳排列
無鉛/符合RoHS標準
應用于：聲納/SDH，網絡，SD/HD視頻，測試和測量，時鐘和數據恢復，FPGA/AASIC時鐘生成
