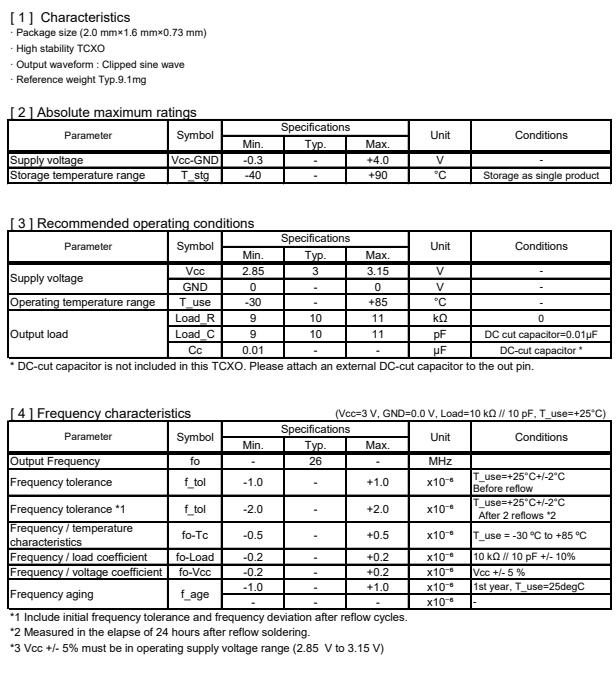

為何溫補晶振X1G004131001016更適合藍牙AOA定位呢?在歲月的長河之中，只有可持續發展的產品才能給人們留下深刻的印象，而產品的誕生無疑是幫助我們解決某些方面的問題，眾觀在無數的產品之中，每一款產品必然少不了晶振產品的相伴左右，愛普生公司非常高興推出了TG-5006CJ，石英晶體振蕩器，溫補晶振編碼X1G004131001016，頻率26.000000兆赫，輸出剪波正弦波，電源電壓2.85至3.15 V，電源電壓(典型)3.000 V，尺寸(LxWxH)2.0 x 1.6 x 0.7 mm，工作溫度-30至+85°C，頻率公差+/- 2.0 ppm，具有超高的穩定性能，低電壓，低相位相噪的特點，常常用于超高精密應用，無線模塊，智能家居，醫療設備，藍牙AOA定位等行業。

Product Number	愛普生晶振	Frequency	LxWxH	Supply Voltage	F.Tol@25°C	Ope Temperature	Freq/Temp
X1G005441031225	TG2016SMN	24.000000 MHz	2.00 x 1.60 x 0.73 mm	2.660 to 3.465 V	+/-1.5 ppm	-40 to +85 °C	+/-0.50 ppm
X1G005441031325	TG2016SMN	25.000000 MHz	2.00 x 1.60 x 0.73 mm	2.660 to 3.465 V	+/-1.5 ppm	-40 to +85 °C	+/-0.50 ppm
X1G005441031425	TG2016SMN	27.000000 MHz	2.00 x 1.60 x 0.73 mm	2.660 to 3.465 V	+/-1.5 ppm	-40 to +85 °C	+/-0.50 ppm
X1G005441031525	TG2016SMN	30.000000 MHz	2.00 x 1.60 x 0.73 mm	2.660 to 3.465 V	+/-1.5 ppm	-40 to +85 °C	+/-0.50 ppm
X1G005441031625	TG2016SMN	48.000000 MHz	2.00 x 1.60 x 0.73 mm	2.660 to 3.465 V	+/-1.5 ppm	-40 to +85 °C	+/-0.50 ppm
X1G005441032025	TG2016SMN	52.000000 MHz	2.00 x 1.60 x 0.73 mm	2.660 to 3.465 V	+/-1.5 ppm	-40 to +85 °C	+/-0.50 ppm
X1G005441032125	TG2016SMN	27.600000 MHz	2.00 x 1.60 x 0.73 mm	2.660 to 3.465 V	+/-1.5 ppm	-40 to +85 °C	+/-0.50 ppm
X1G004131000416	TG-5006CJ	26.000000 MHz	2.00 x 1.60 x 0.73 mm	1.700 to 1.900 V	+/-2.0 ppm	-30 to +85 °C	+/-0.50 ppm
X1G004131000616	TG-5006CJ	16.367667 MHz	2.00 x 1.60 x 0.73 mm	2.850 to 3.150 V	+/-2.0 ppm	-30 to +85 °C	+/-0.50 ppm
X1G004131000716	TG-5006CJ	16.368000 MHz	2.00 x 1.60 x 0.73 mm	2.850 to 3.150 V	+/-2.0 ppm	-30 to +85 °C	+/-0.50 ppm
X1G004131000816	TG-5006CJ	16.369000 MHz	2.00 x 1.60 x 0.73 mm	2.850 to 3.150 V	+/-2.0 ppm	-30 to +85 °C	+/-0.50 ppm
X1G004131000916	TG-5006CJ	19.200000 MHz	2.00 x 1.60 x 0.73 mm	2.850 to 3.150 V	+/-2.0 ppm	-30 to +85 °C	+/-0.50 ppm
X1G004131001016	TG-5006CJ	26.000000 MHz	2.00 x 1.60 x 0.73 mm	2.850 to 3.150 V	+/-2.0 ppm	-30 to +85 °C	+/-0.50 ppm
X1G004131001116	TG-5006CJ	38.400000 MHz	2.00 x 1.60 x 0.73 mm	2.850 to 3.150 V	+/-2.0 ppm	-30 to +85 °C	+/-0.50 ppm
X1G004131001316	TG-5006CJ	16.367667 MHz	2.00 x 1.60 x 0.73 mm	2.850 to 3.150 V	+/-2.0 ppm	-30 to +85 °C	+/-2.00 ppm
X1G004131001416	TG-5006CJ	16.368000 MHz	2.00 x 1.60 x 0.73 mm	2.850 to 3.150 V	+/-2.0 ppm	-30 to +85 °C	+/-2.00 ppm
X1G004131001516	TG-5006CJ	16.369000 MHz	2.00 x 1.60 x 0.73 mm	2.850 to 3.150 V	+/-2.0 ppm	-30 to +85 °C	+/-2.00 ppm
X1G004131001616	TG-5006CJ	19.200000 MHz	2.00 x 1.60 x 0.73 mm	2.850 to 3.150 V	+/-2.0 ppm	-30 to +85 °C	+/-2.00 ppm
X1G004131001716	TG-5006CJ	26.000000 MHz	2.00 x 1.60 x 0.73 mm	2.850 to 3.150 V	+/-2.0 ppm	-30 to +85 °C	+/-2.00 ppm
X1G004131001816	TG-5006CJ	38.400000 MHz	2.00 x 1.60 x 0.73 mm	1.700 to 3.300 V	+/-2.0 ppm	-30 to +85 °C	+/-2.00 ppm

為何溫補晶振X1G004131001016更適合藍牙AOA定位呢?愛普生拓優科夢是一家專業從事晶體元件的廠商,愛普生拓優科夢（Epson — yocom）運用長年積累的培育人工石英貼片晶振以及以加工為代表的、實現精微化、高精度、高品質的綜合技術,提出“3D戰略”究極應用石英特性而制造的三大元器件:定時元器件、傳感元器件、光學元器件,并創出將其復合而成的模塊,為成為不可缺少的企業而邁進至今.
